The flux cream STIRRI-V3-TF from STIRRI is a very special material.
V3 is the latest no-clean formulation to combine the performance of the STIRRI series in a single universal, REACH-compliant flux with a UV optical tracer.
It also has a pleasant non-chemical scent that is very pleasant for users.
Activated residues are clear and non-corrosive.
The manufacturer recommends that all flux residues should always be removed to avoid contaminating the board or causing a voltage drop in circuits with high impedance; furthermore, non-activated residues can absorb moisture from the air and subsequently cause corrosion.

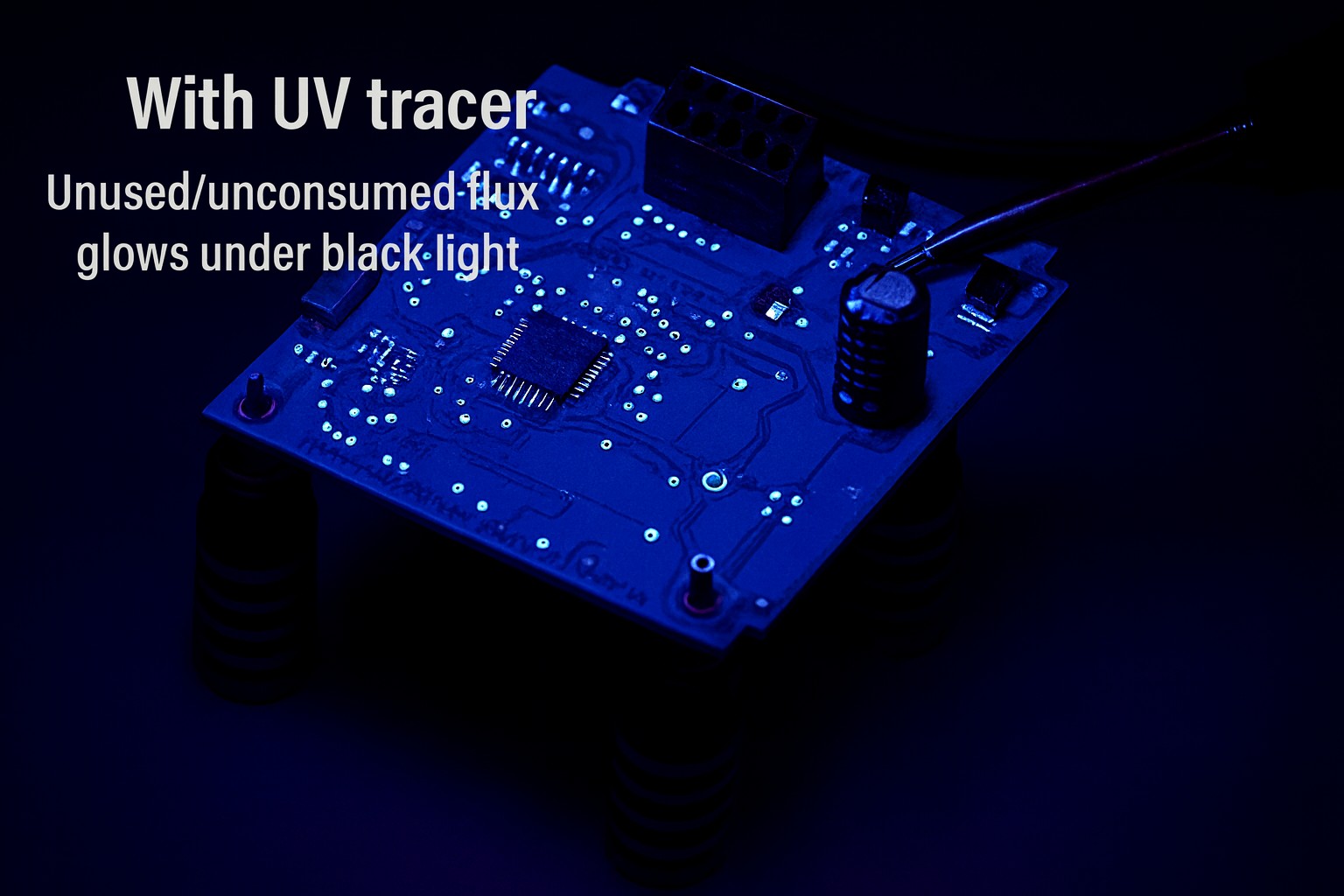

After cleaning the board, the integrated UV tracer makes any remaining flux residue visible under UV light.
The universal no-clean solder flux is suitable for tin/lead and lead-free applications and meets REACH requirements.
ROL0 flux classification, copper mirror test according to JIS-Z-3197 (1986) section 6.6.2. ( IPC J STD 004 Test Method IPC TM 650 2.3.32) successfully passed.
Excellent wetting compatibility on most PCB surfaces
– Rosin-based, tacky, low-activity no-clean soldering flux for professional/industrial use. Highly praised by professional users for its strong, long-lasting effect and easy cleaning .
– Thicker (compared to STIRRI-V2-TF) and therefore ideal for the mechanical assembly of components and industrial processing/cleaning.
– Applicable for syringe, stencil printing, rework, BGA ball attach and reballing with standard tin/lead alloy
– Optimal viscosity – – 38-51 (Malcom @ 10 RPM/25°C (x103mPa/s)
– Wide process window – excellent performance in flip chip bumping and chip scale packaging – pick up where you left off
– High temperature compatibility (up to 300°C/600°F)
– Low electrochemical migration (<1 decade of decline).

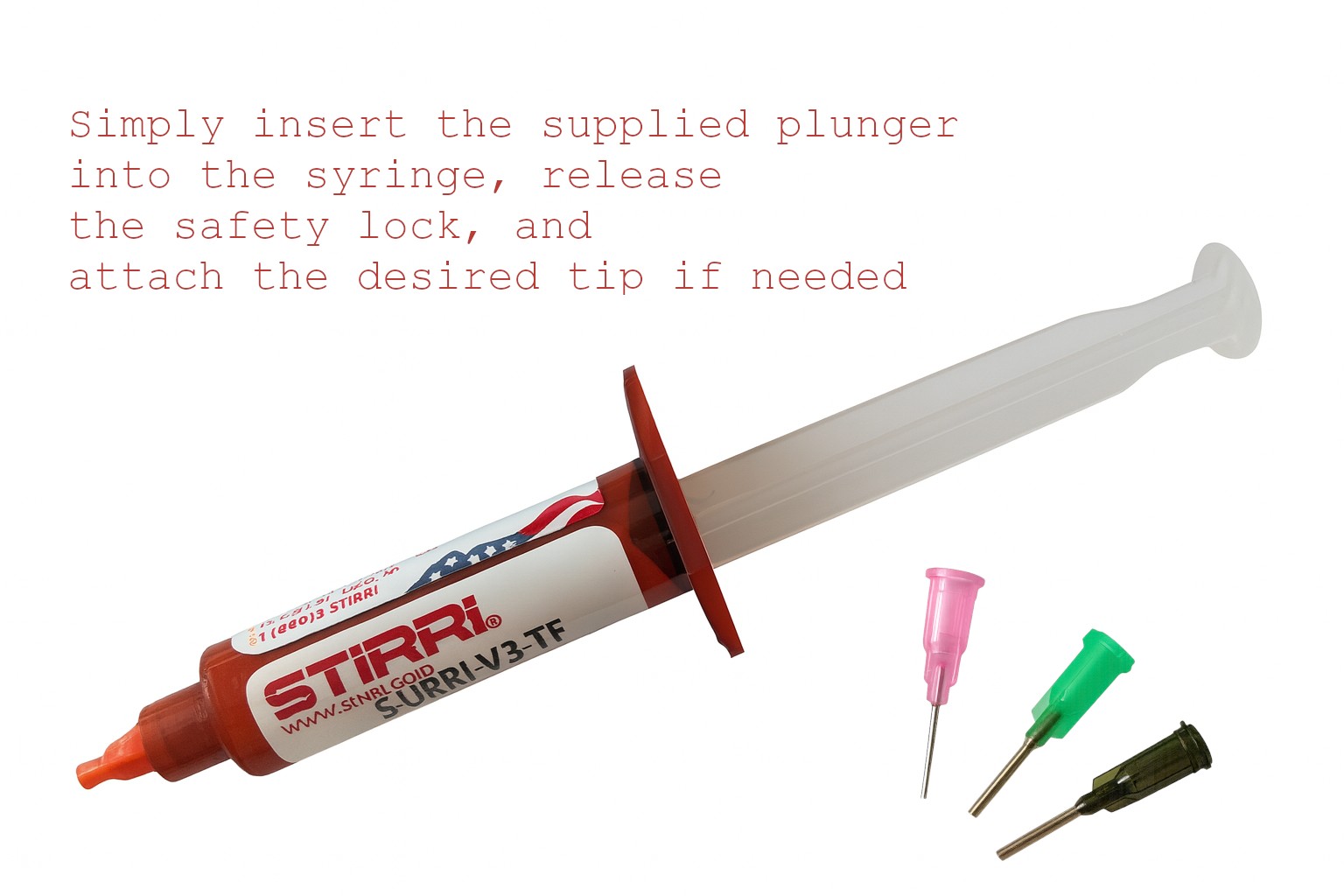

The syringes can be used in industrial dispensing machines or for manual application and are equipped with a plunger stopper. The plunger should not be removed after use as it provides the best seal to prevent contact with air.

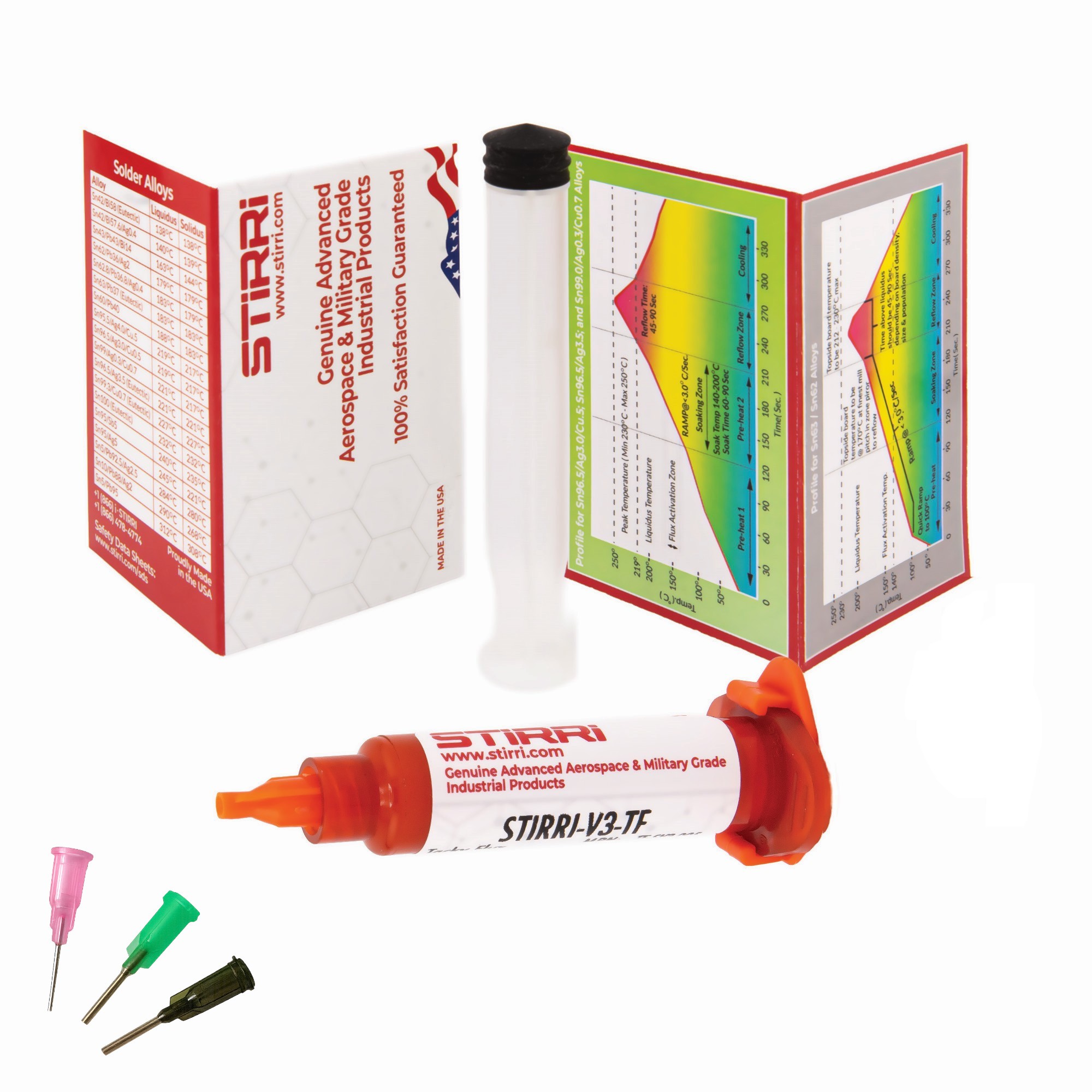

Contents:
– 5 g flux cream STIRRI-V3-TF in a handy dosing syringe.

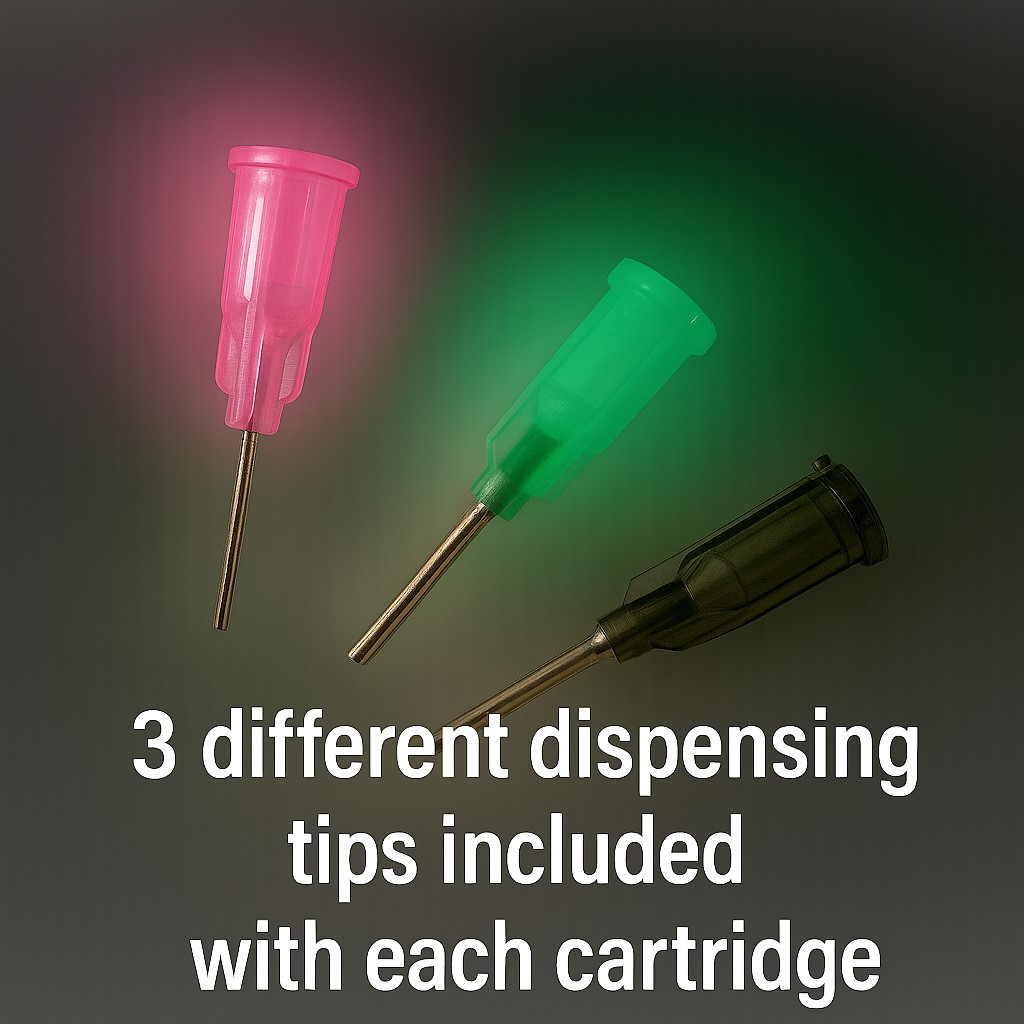

– Dosing cap with metal tip
– incl. plunger for manual dosing

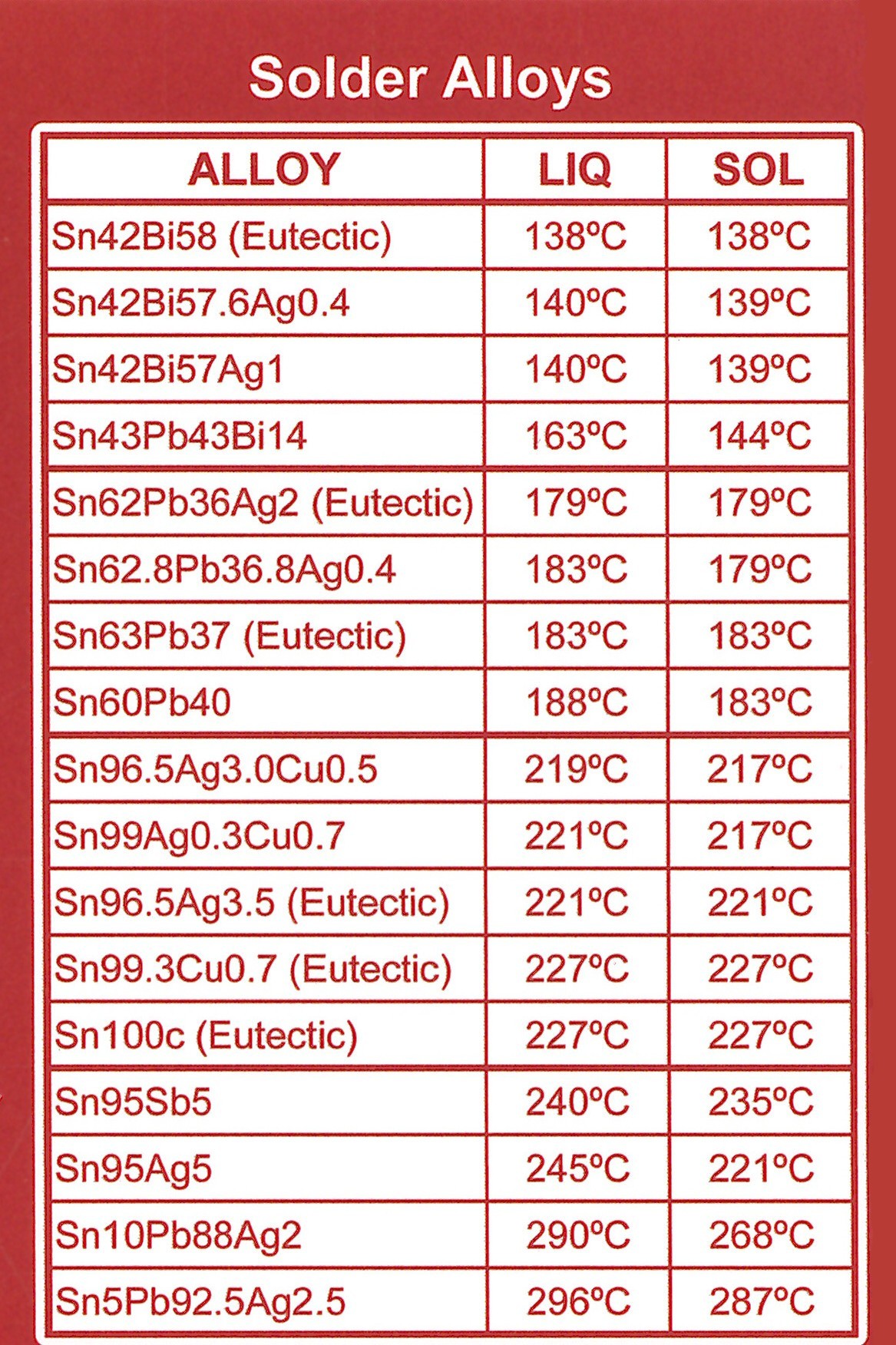

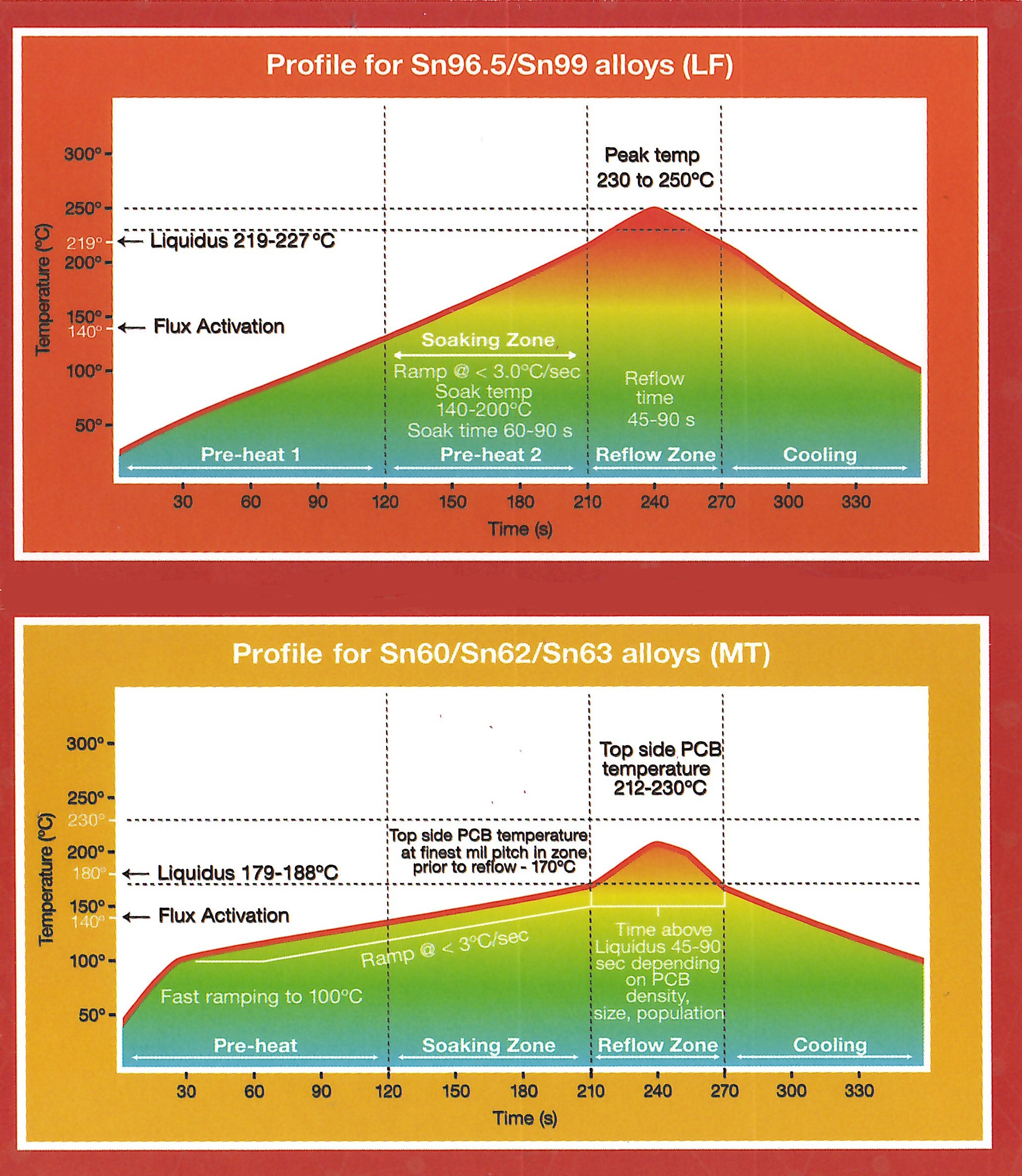

– Overview card with process temperatures for the most popular solder alloys
