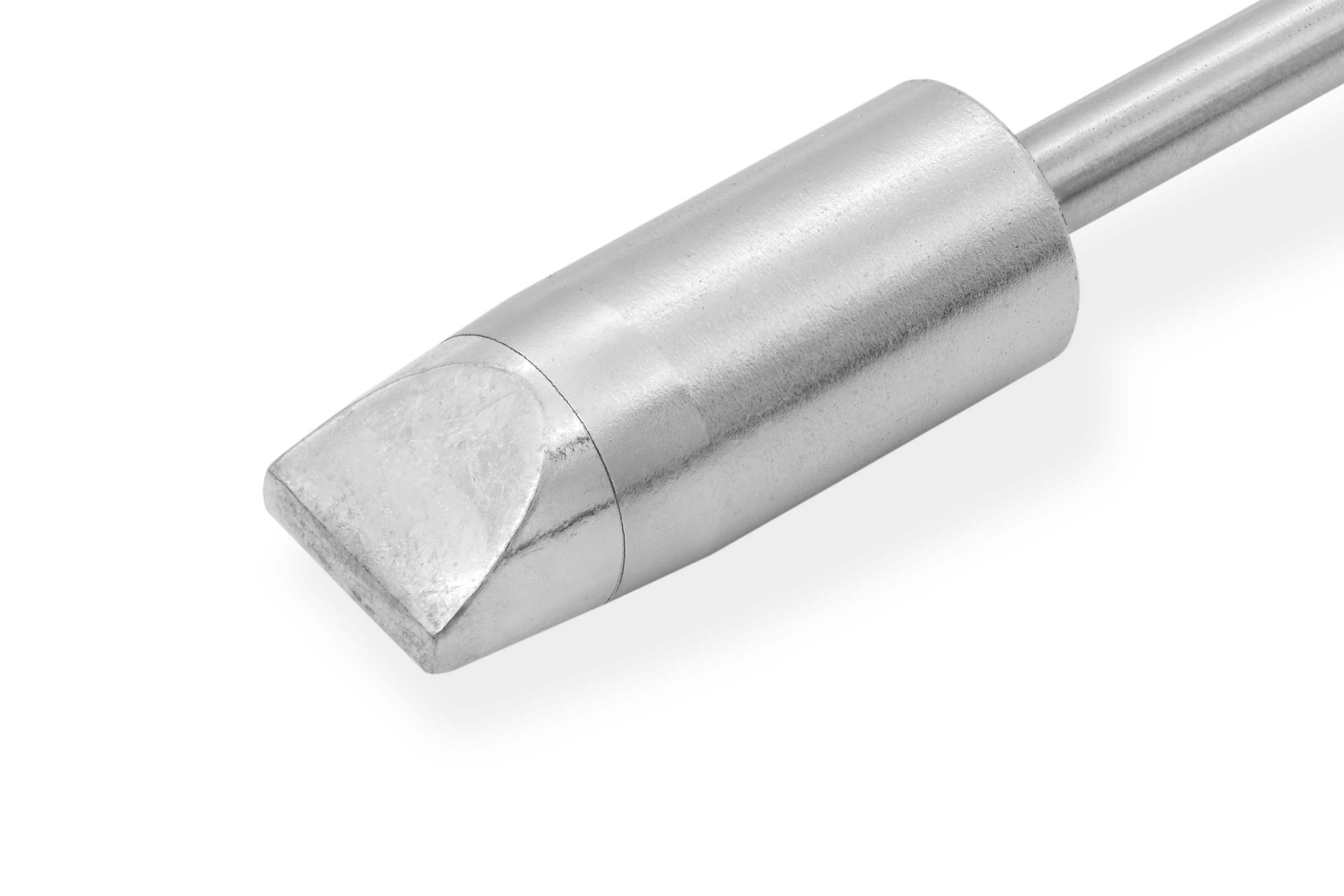

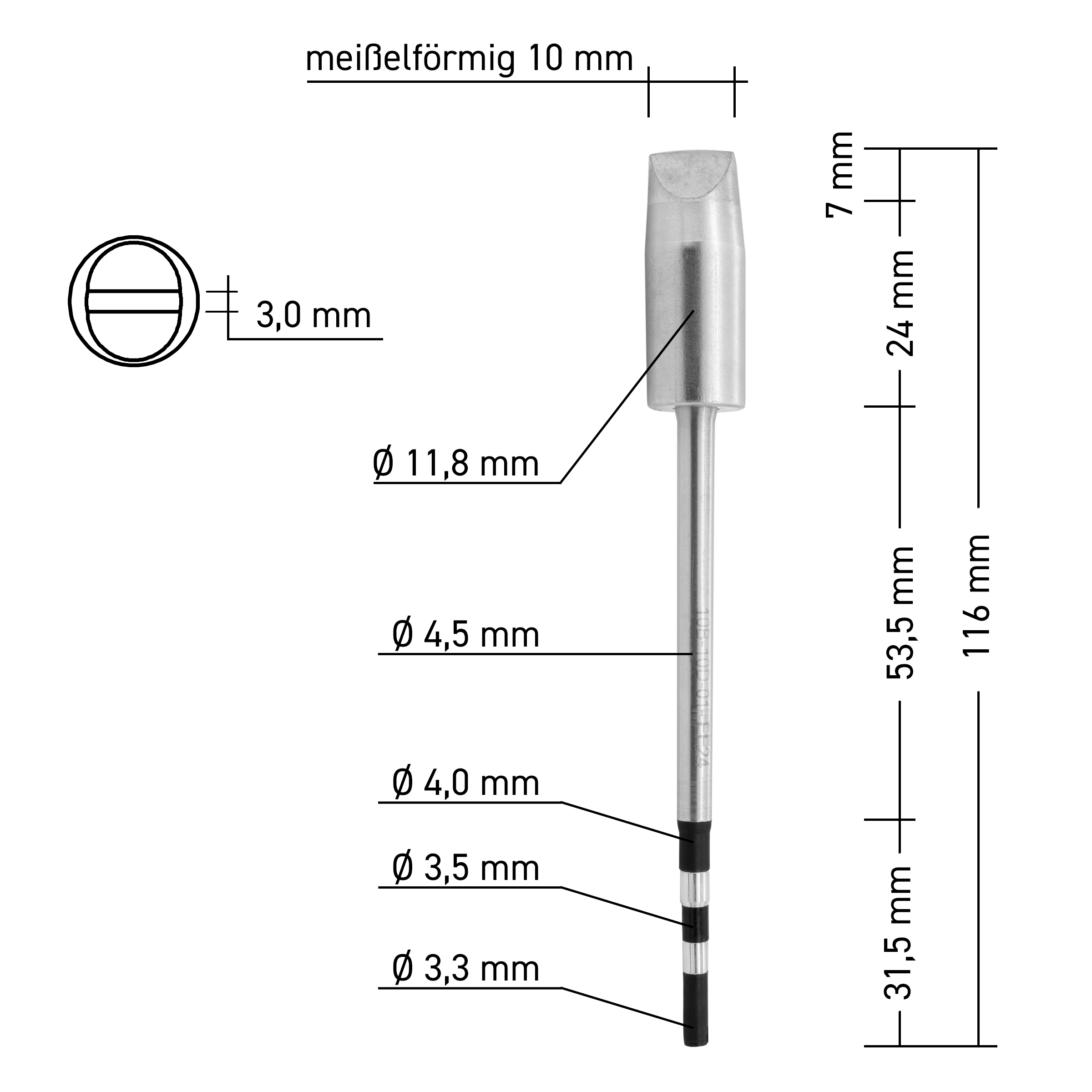

The QUICK TSS10B-10D-01 cartridge soldering tip is a high-performance soldering tip for the TS10 system, designed for soldering tasks that require high heat input. With its chisel-shaped geometry, 10 mm wide and 3.0 mm thick, it is particularly suitable for applications where larger solder joints must be processed safely, evenly, and with high heat transfer.
The wide, chisel-shaped working surface allows a large amount of heat to be transferred directly to the solder joint. This is particularly advantageous for heavy-gauge connections, wide conductor tracks, thick cables, or large-area contacts. The 300W version is designed to provide a high thermal reserve even with heat-absorbing workpieces, thereby supporting fast, clean work.
Compared to very narrow or pointed soldering tips, this version offers significantly more contact area with the solder joint. This allows heat to be transferred more effectively into larger metal surfaces. At the same time, the 3.0 mm thick chisel-shaped tip is slightly easier to control than even more massive tip variants, making it well-suited for tasks that require high power but still demand more precise work.
Applications based on the tip shape
The chisel-shaped tip is particularly useful when work is not focused on the smallest structures but rather when a larger contact area is required. The 10 mm wide tip transfers heat quickly and evenly, which is a major advantage, especially for robust solder joints.
Typical applications include soldering and re-soldering large-area solder pads, working on thick cables, strands, tabs, contacts, and connectors, as well as working on assemblies with high heat absorption. This tip shape is also very well suited for tinning larger contact areas or for applications in power electronics, manufacturing, repair, and service.
The 10 x 3 mm version offers a good combination of high heat transfer and slightly improved control. It is therefore particularly appealing to users who need to work on wide solder joints but prefer a bit more control at the joint compared to even thicker tip shapes.
Recommended Use
This soldering tip is recommended wherever large or heat-dissipating joints need to be reliably heated. It is particularly suitable for professional applications with increased power requirements and for work where a fine electronics tip can no longer deliver sufficient heat to the solder joint.
For very small pads, delicate components, or fine SMD work, however, this tip shape is only suitable to a limited extent. Its strength clearly lies in large-area, robust, and heat-intensive solder joints.
Quick Summary
The QUICK TSS10B-10D-01 is a 300W cartridge soldering tip for the TS10 system with a wide, chisel-shaped geometry designed for high heat requirements. It is ideal for large-area solder joints, strong connections, and heavy workpieces, offering an excellent combination of high heat output, efficient heat transfer, and controlled guidance.
