The QUICK hot air rework set with the QUSR800L stand consists of the following components:

– QUICK 861DW digital hot air rework station 1000 watts 1-120 L/min. +100 to +500°C
– QUICK SR800L adjustable stand with PCB holder for PCBs 300 mm x 270 mm
– QUICK 854 infrared heating plate with Elstein ceramic radiator 400 watts
– QUICK 855F professional rework fan

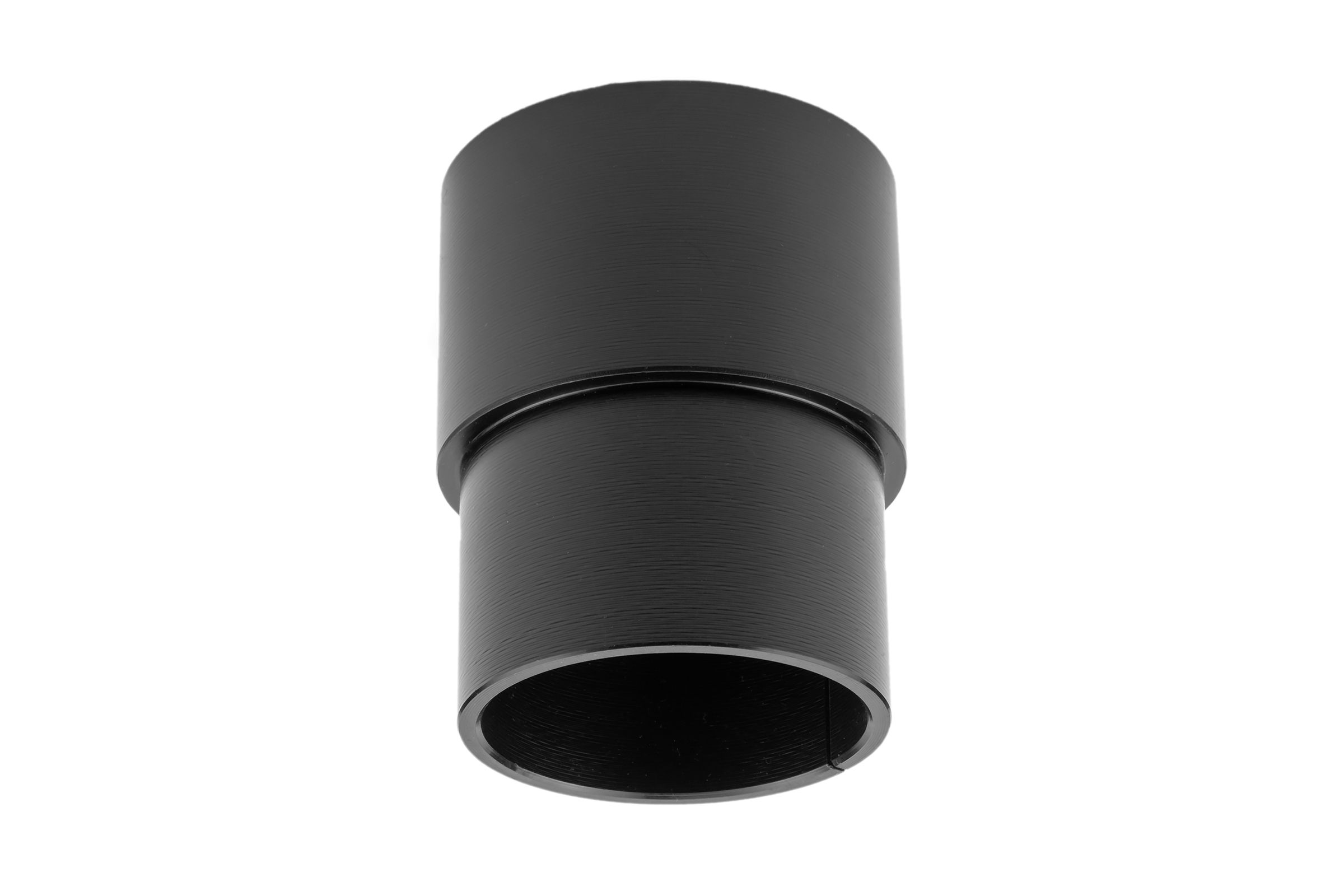

– QUICK ADP713 stand adapter for rework station 861DW

Key technical data of the soldering station:

– Connected load: 1000 watts
– Temperature range: 100-500°C
– Temperature stability: +/- 2°C
– Hot air adjustment range: 1–120 l/min.
– Standby: 0-999 s

Key technical data for the infrared heating plate:

– Power 400 watts
– Includes temperature sensor and PID control
– Plate area 130 * 130 mm
– Plate material: ceramic heating element
– Temperature range 50°C- 350°C
– Thermometer range 0-600°C

Key technical data of the rework fan:

Volume flow: 1 – 2.4 m³ / min
