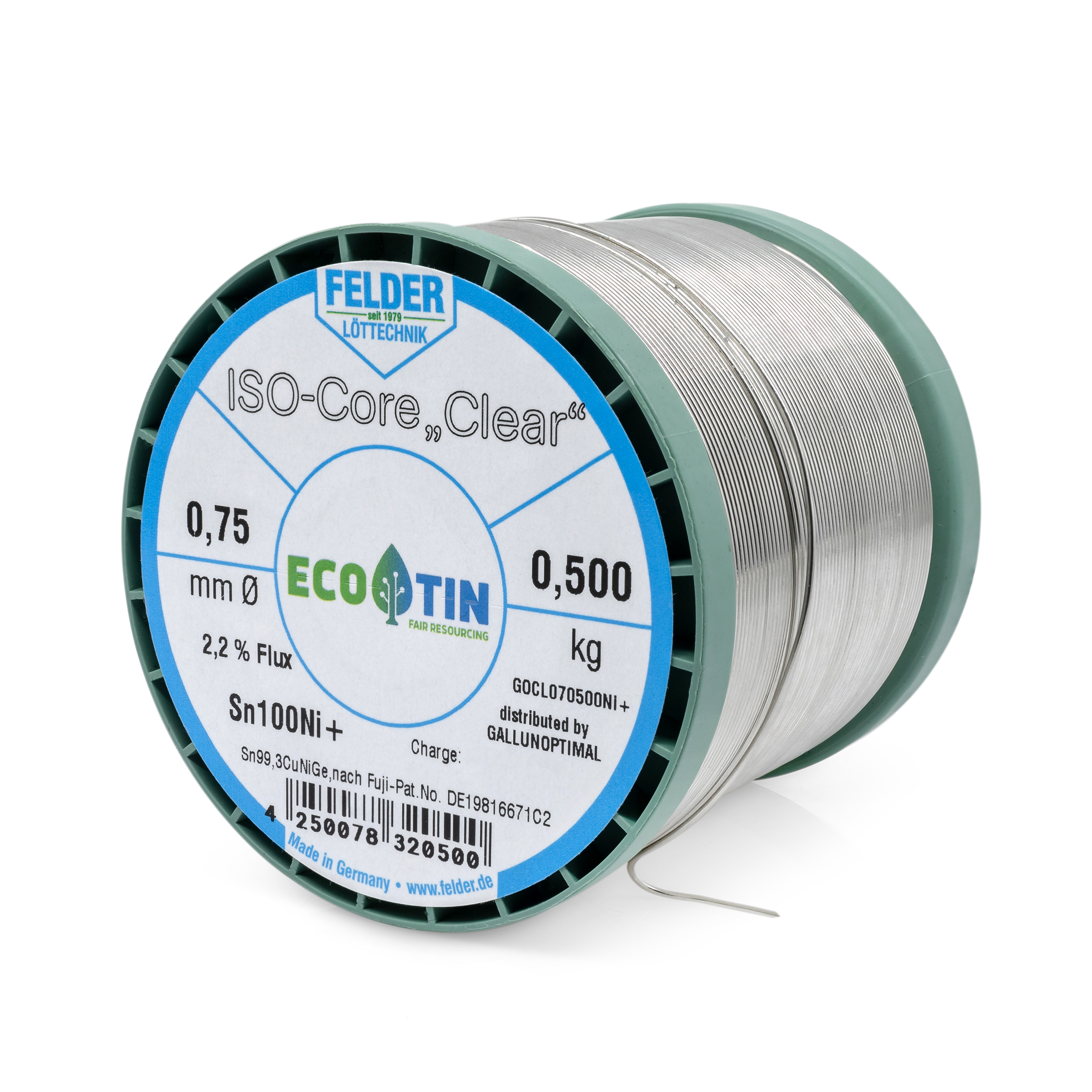

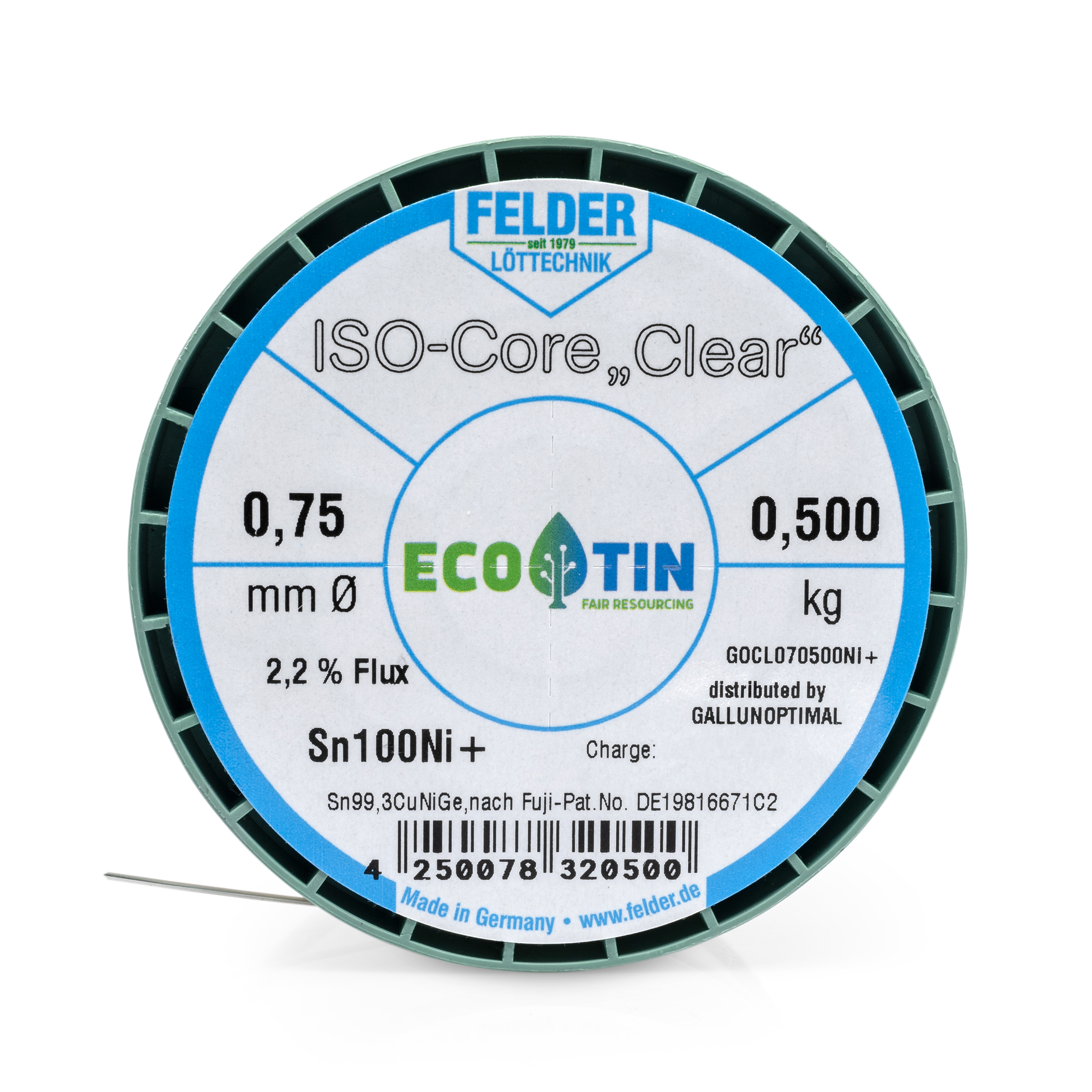

GALLUNOPTIMAL ISO-Core Sn99.25Cu0.7Ni0.05 (Sn100Ni+) lead-free solder wire for hand soldering in electronics, DIN EN ISO 9453: 2014 with 2.2% flux filling, clear, containing halogen <0.15% REL1 DIN EN ISO 9454-1, 1222, melting temperature 227°C, 0.75mm, 500g spool
Sn99,3CuNiGe (Sn100Ni+) bleifrei
GALLUNOPTIMAL ISO-Core Sn99.25Cu0.7Ni0.05 (Sn100Ni+) lead-free solder wire, 2.2% FM Clear, halogen-free <0.15% REL1, 0.75mm, 500g spool
Description
technical data
| Dimensions | 65 × 65 × 63 mm |
|---|---|
| Flux-type | REL1 |
| Fluxtype | Yes |
| Weight | 0,52 kg |
| flux conent | 2.20 % |
| flux intensity | weak |
| leadfree | Yes |
| model | 500g spool/0.75mm diameter |
| no clean | No |
| package size in kg | 0.500 kg |
| wire diameter | 0.70 mm |
EU product manager
Felder GmbH Löttechnik
https://www.felder.de/
Im Lipperfeld 11
DE 46047 Oberhausen
