ERSA Lötkolben i-Tool PICO MK2 80W

Catalog no.: 0135CDK GTIN: 4003008153606 Availability: available from stock
1 pcs.117,81

incl. VAT

zzgl. Versandkosten

ERSA i-Tool PICO MK2 soldering iron

i-Tool PICO MK2 soldering iron for i-CON PICO MK2 soldering station
This ultra-light and powerful soldering iron features the same outstanding heating technology as its larger brothers in the Ersa i-Tool family.

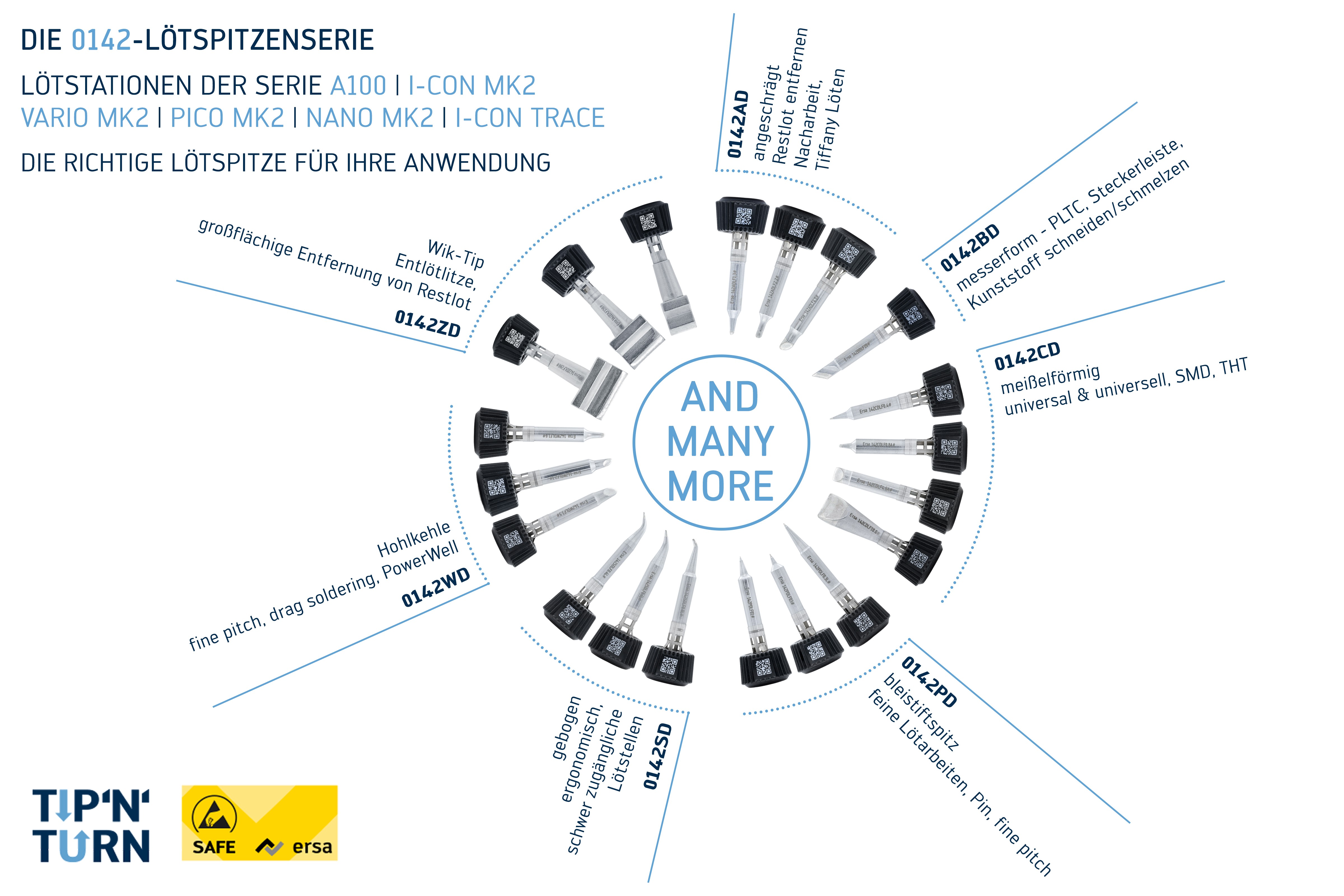

A wide range of cost-effective 142 series permanent soldering tips are available for all of them.

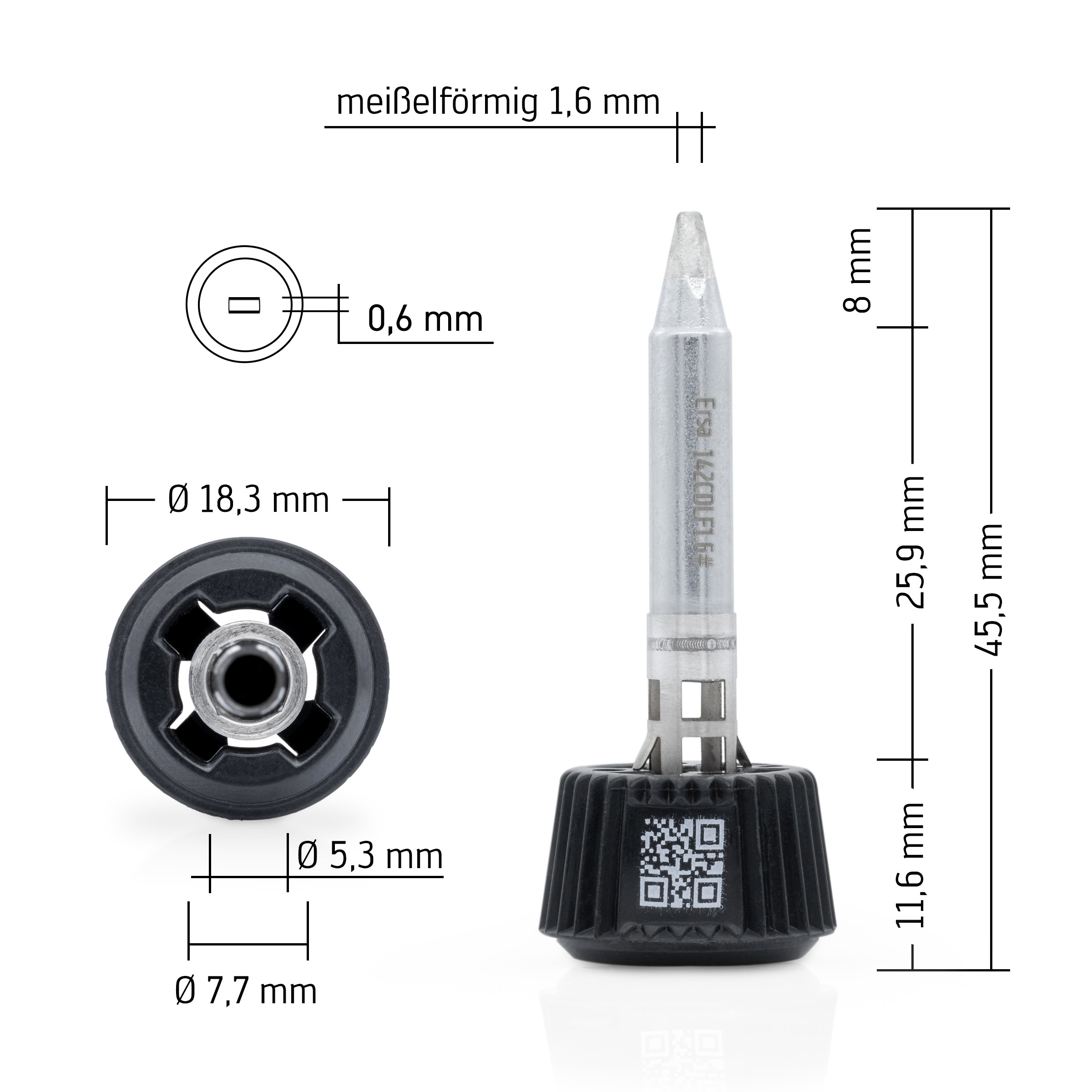

The soldering iron has a maximum of 80 watts and comes with a 1.6 mm chisel-shaped soldering tip.

The integrated Tip’N’Turn bayonet lock ensures quick and easy tip changes and also provides a 20-25% power improvement compared to screw connections.

Dimensions 340 × 72 × 46 mm
Heating time

9.00 sec.

Max. solder temperature

450 °C

ROHS compliance

Yes

Voltage

16.50 Volt

Weight 0,14 kg
anitstatic design

No

max. power

80 Watt

operating type

at station

replacement heater

014100J

soldering-/desoldering tip

0142CDLF16

soldering-tip diameter / width

1.60 mm

soldering-tip form

chisel-shaped

surface soldering-tip

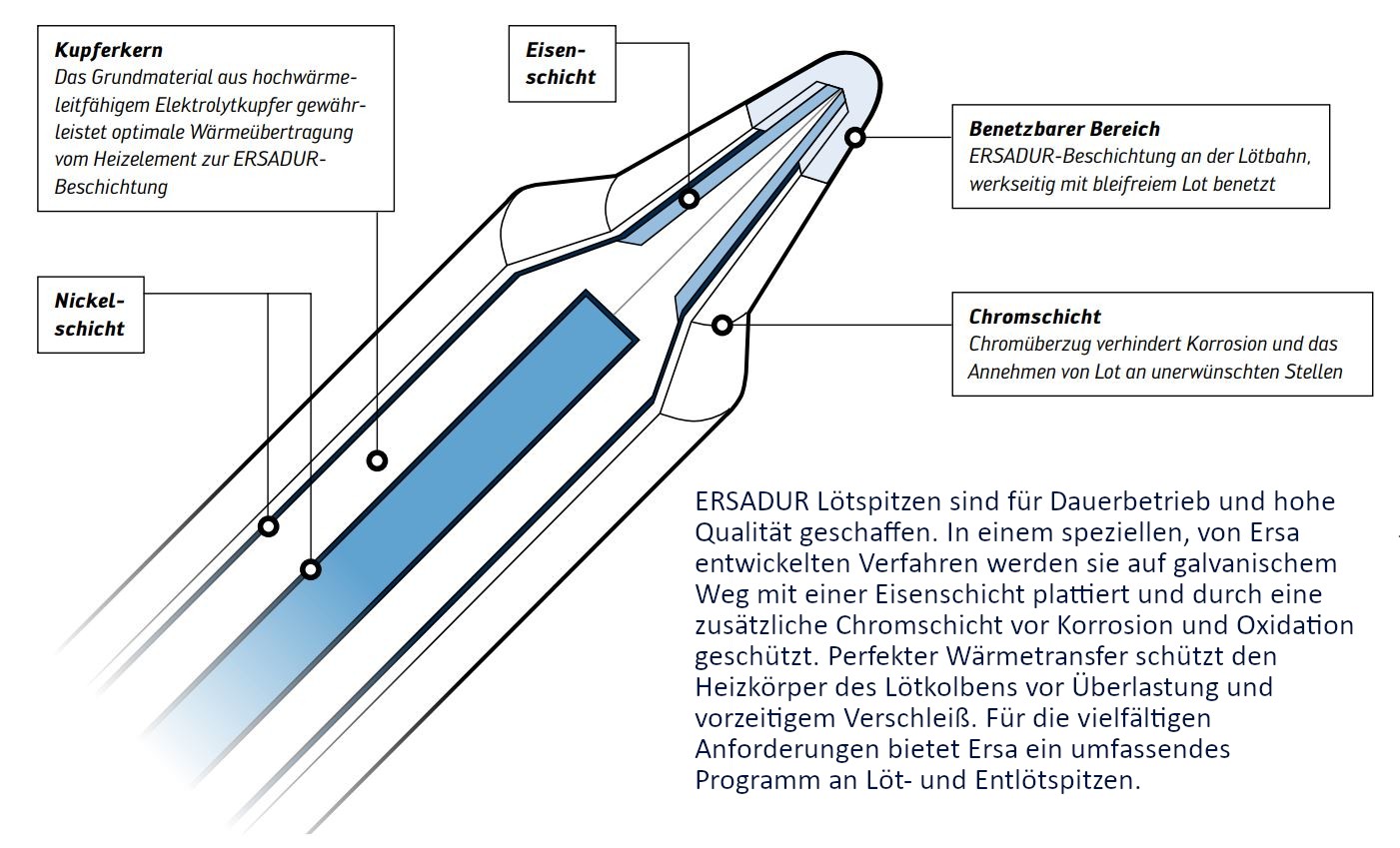

Permanent soldering tip

tip series

142

type of soldering tip

straight

EU product manager

ERSA GmbH
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
