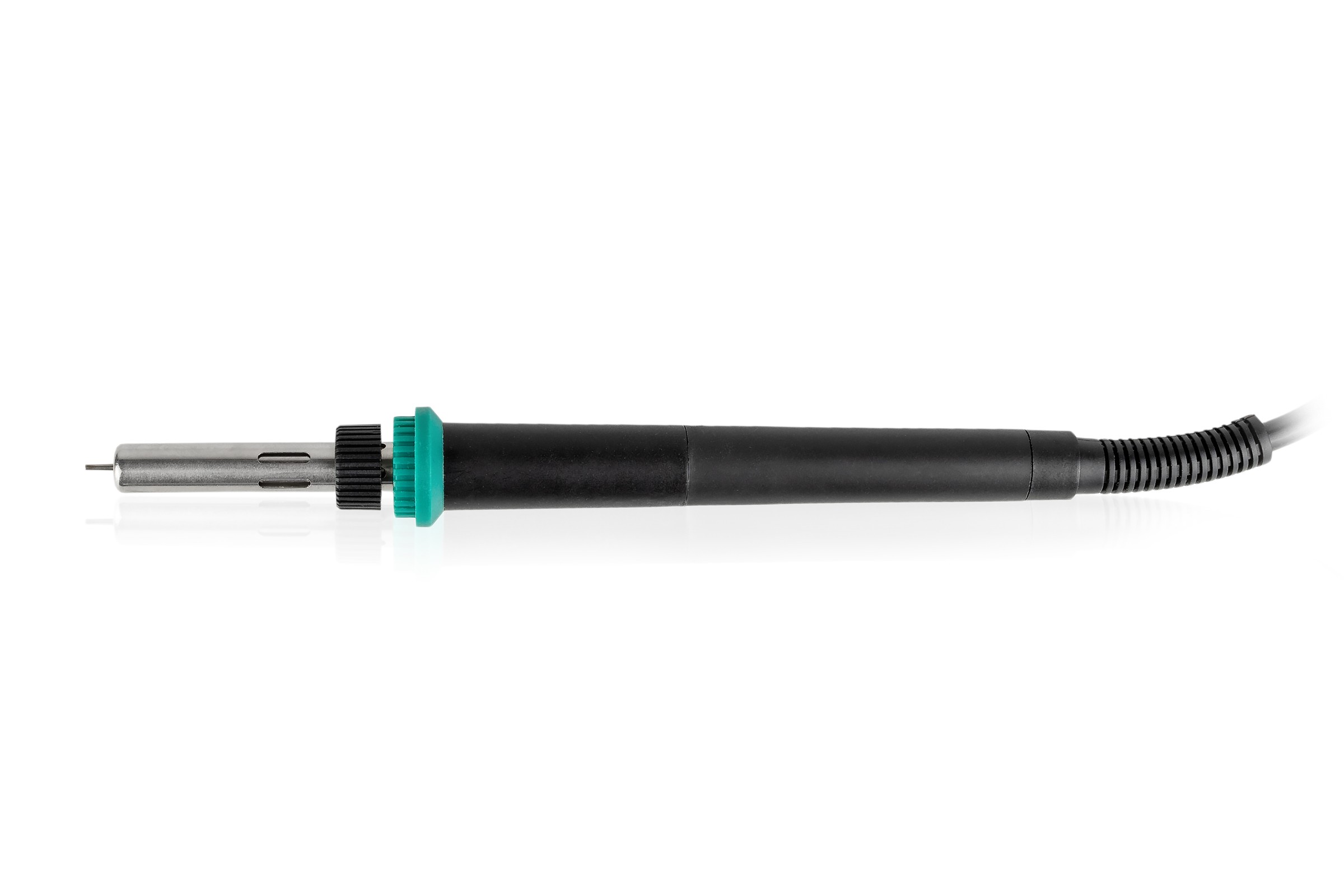

ERSA i-Tool NANO soldering iron
i-Tool NANO soldering iron for i-CON NANO soldering station (0IC1200A)
This ultra-light and powerful soldering iron features the same outstanding heating technology as its larger brothers in the Ersa i-Tool family.
A wide range of cost-effective 0102 series permanent soldering tips are available for all of them.
The soldering iron has a maximum of 80 watts and comes with a 1.6 mm chisel-shaped soldering tip.
| Dimensions | 300 × 70 mm |
|---|---|
| Heating time | 9.00 sec. |
| ROHS compliance | Yes |
| Weight | 0,15 kg |
| anitstatic design | Yes |
| max. power | 80 Watt |
| operating type | at station |
| replacement heater | 010102J |
| soldering-/desoldering tip | 0102CDLF16 |
| soldering-tip diameter / width | 1.60 mm |
| soldering-tip form | chisel-shaped |
| surface soldering-tip | Permanent soldering tip |
| type of soldering tip | straight |
