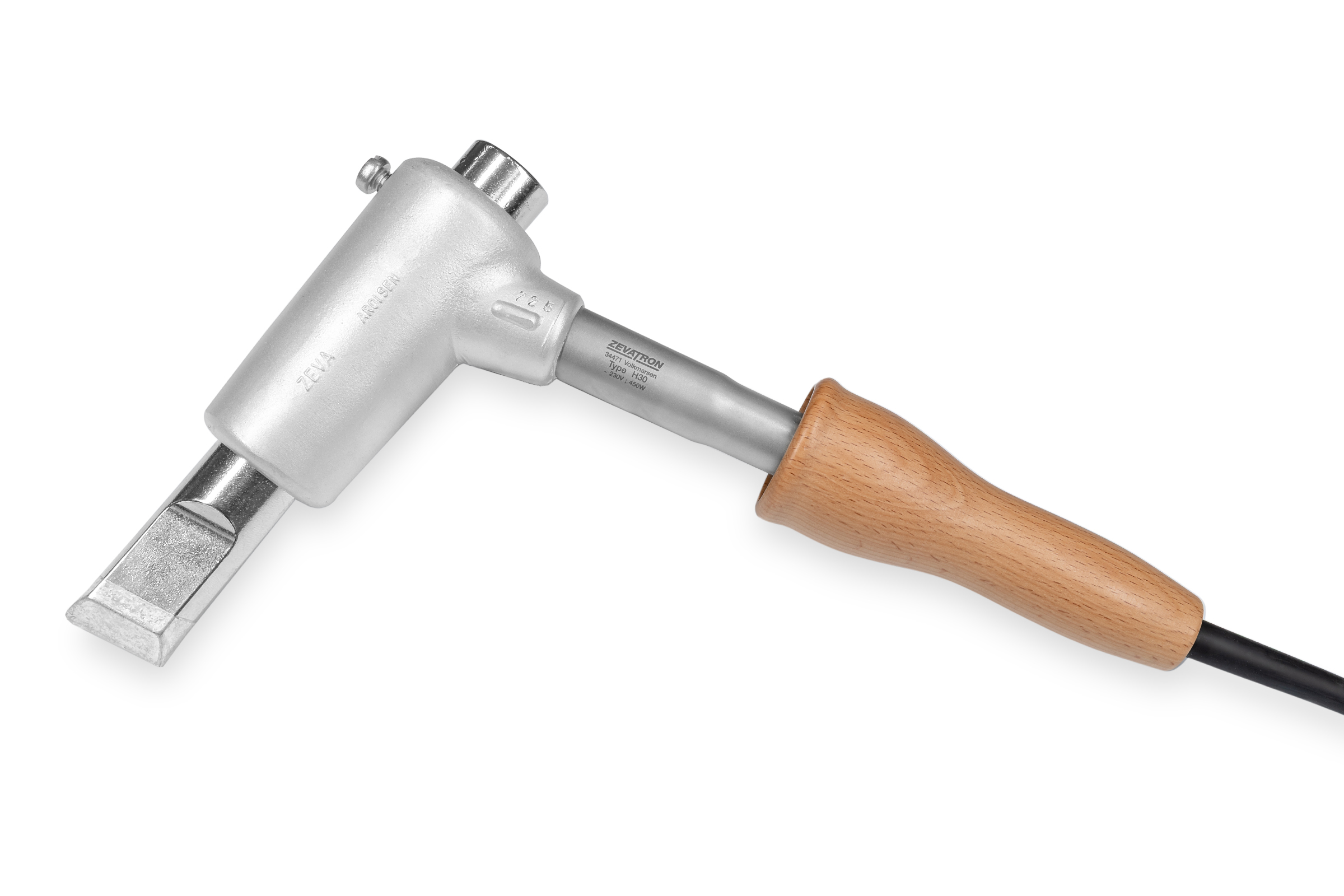

ERSA 150 S Standard Soldering Iron
The proven ERSA 150 S soldering iron is designed for soldering jobs with a higher heat requirement, such as on copper conductors with cross sections of up to 6 mm². The ERSA standard soldering iron is also used for soldering thin sheet metal or for lead glazing. The soldering iron is equipped with a 5.3 mm chisel-shaped angled ERSADUR permanent soldering tip (0152JD) and a rest (0A04).
| Dimensions | 415 × 75 × 53 mm |
|---|---|
| Heating time | 180.00 sec. |
| Max. solder temperature | 450 °C |
| ROHS compliance | Yes |
| Voltage | 230.00 Volt |
| Weight | 0,52 kg |
| anitstatic design | No |
| max. power | 150 Watt |
| model | curved |
| operating type | Mains operation |
| replacement heater | E015100 |
| soldering-/desoldering tip | 0152JD |
| soldering-tip diameter / width | 5.30 mm |
| soldering-tip form | chisel-shaped |
| surface soldering-tip | Permanent soldering tip |
