ERSA Independent 75 Gas Soldering Set Professional Set

Mobile power – wherever you want! Powerful, with a wide range of high-quality features, small, handy and, in addition, practically packaged. The Independent 75 Basic Set and Professional Set gas soldering sets leave nothing to be desired! The ergonomic, antistatic gas soldering iron with piezo ignition is ideal for service and maintenance work, especially when there is no power supply. With its infinitely adjustable power of 15 – 75 W (compared to electric soldering irons), maximum soldering tip temperatures of up to 580°C can be achieved. The Independent is operated with standard butane lighter gas. The set is supplied in a practical transport case. In addition to the contents of the Basic Set, the “Profi Set” includes two further soldering tips, a hot knife for cutting rigid foam materials, a hot gas nozzle, a reflector plate for heat-shrink tubing and a flame nozzle for micro-welding.

Like its big brother, the Independent 130, the Independent 75 is also available in the two set variants as a basic set or a professional set.

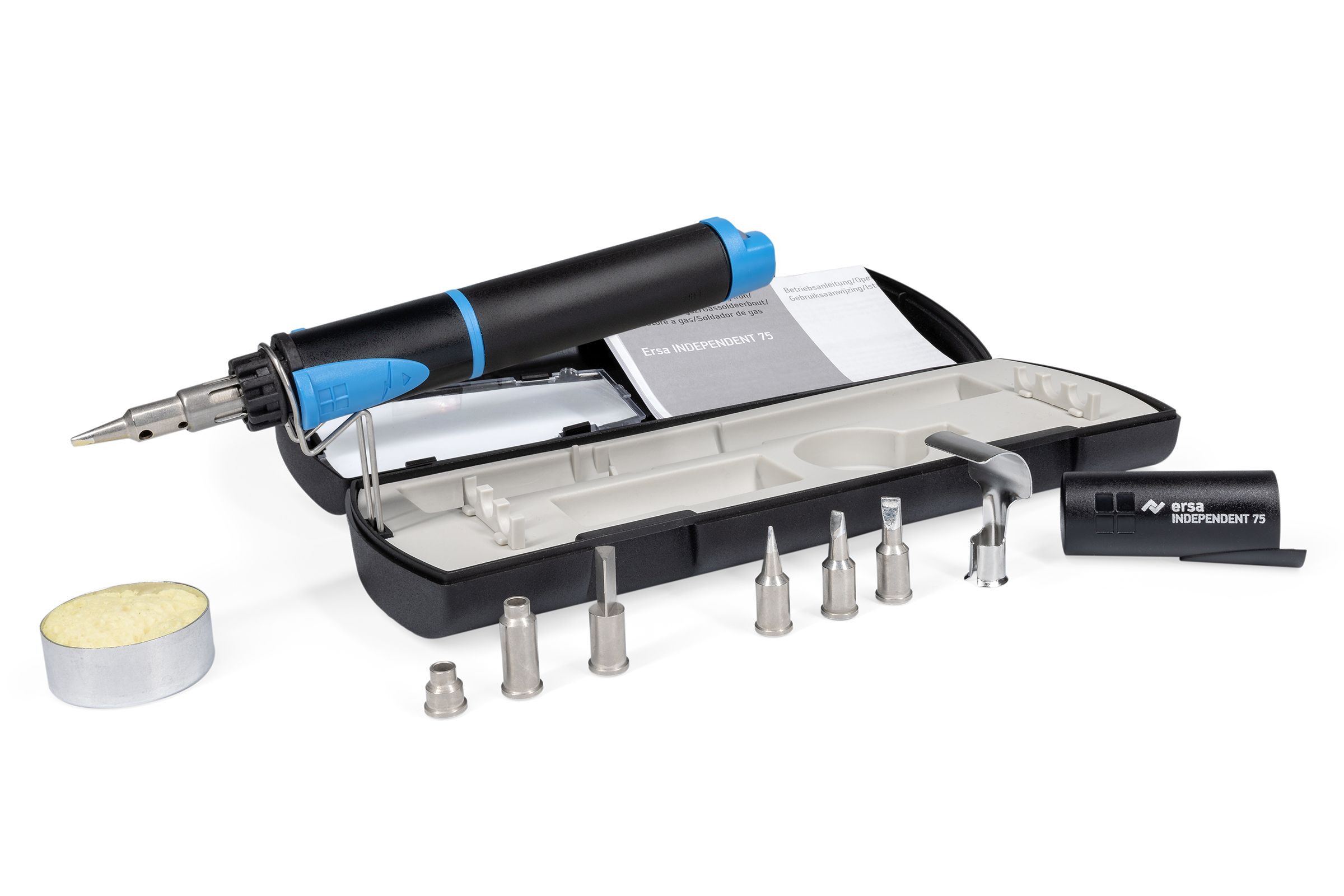

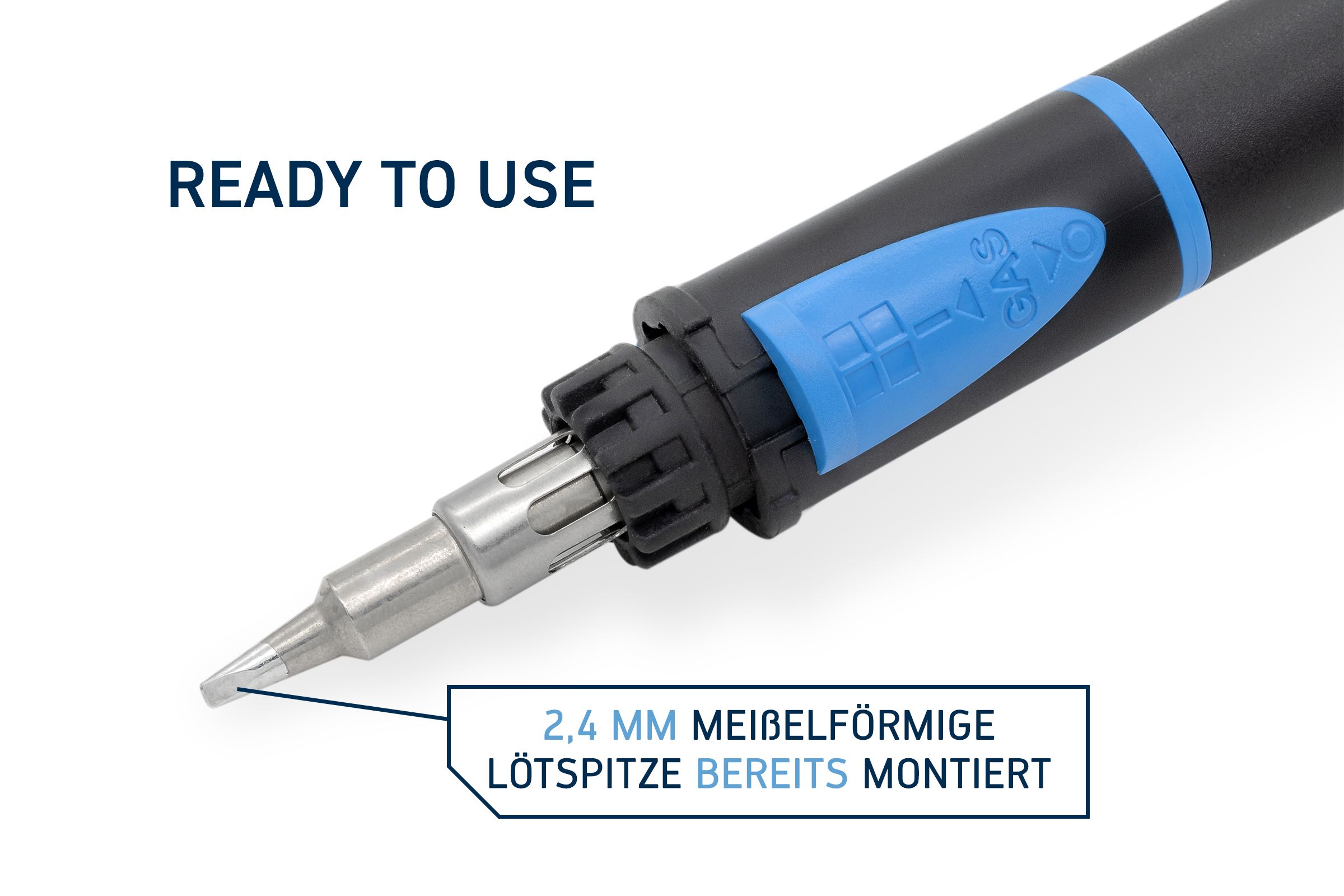

The Independent 75 “Profi Set” includes a gas soldering iron with a soldering tip (0G072KN), 2.4 mm nickel-plated chisel-shaped, three additional soldering tips, a hot knife for shaping and cutting rigid foams, a hot gas nozzle and a reflector plate for processing heat-shrink tubing and soldering SMD components , a flame nozzle for micro-welding, a sponge container with cleaning sponge (0006G) and a storage bracket (0A20).

All parts of this set are supplied in a handy plastic case.

Dimensions (gas soldering iron): ∅ 3cm/length 17.7cm

Maximum contents of gas reservoir: approx. 6ml

Dimensions 225 × 84 × 38 mm
Heating time

46.00 sec.

Max. temperature

580 °C

ROHS compliance

Yes

Weight 0,29 kg
max. power

75 Watt

model

nickel-plated

operating type

Gas operation

replacement (de-)solderiron

0G070KN

soldering-/desoldering tip

0G072KN

soldering-tip diameter / width

2.40 mm

soldering-tip form

chisel-shaped

surface soldering-tip

Permanent soldering tip
