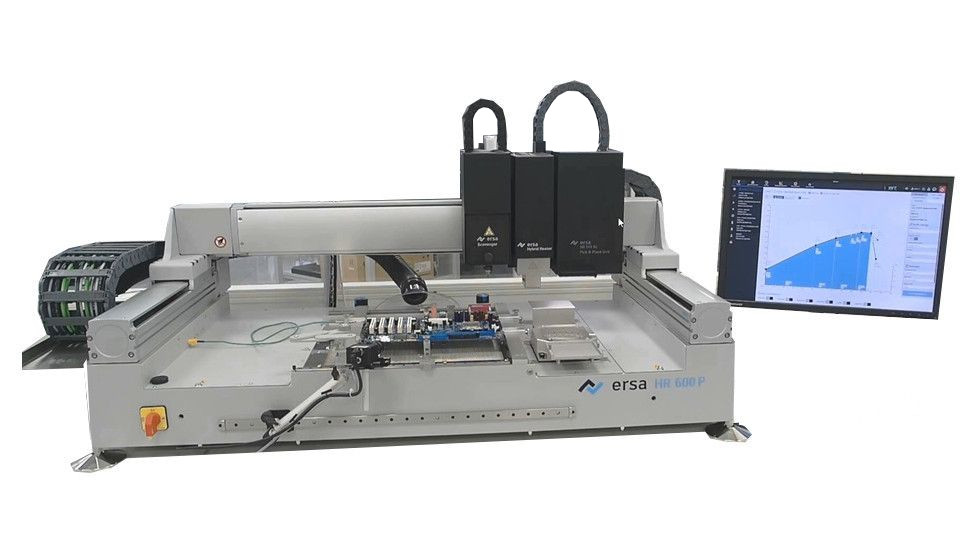

Ersa HR 600P Hybrid Precision Rework System
● 6200 W heating power
-5400 W bottom heater / 6 zones / 380 x 380 mm
– 800 W top heater / 2 zones / 60 x 60 mm
● 400V AC, 3-phase, 50/60 Hz, 16A, 6700W
● Compressed air 6 bar, 1/4 inch quick coupling
● 1 digital contactless IR sensor built in
● 3 type K thermocouple inputs
● Component size 1 x 1 mm to 60 x 60 mm
● Placement accuracy up to +/- 25 μm
● Max. PCB size – standard: 380 x 420 mm (+x) / 15.4″ x 16.5″
● 1 center support rail with 1 pin
● 1 Accu-TC sensor
● Air baffle 40 x 40 mm
● Air baffle 30 x 30 mm
● Air baffle 20 x 20 mm
● 1 thermocouple holder
● Nozzle Ø 5 mm (3.5 mm silicone suction cup integrated)
● Nozzle Ø 10 mm (8.0 mm silicone suction cup integrated)
● Placement nozzle Ø 5 mm
● Placement nozzle Ø 10 mm
● Ethernet interface (RJ45)
● Ersa HRSoft2 operating software
● Lenovo PC, Win 11, 16GB RAM, SSD, 2x LAN
● Lenovo 23.8-inch monitor
● Made in Germany

Technical data:
Ambient temperature: 18–26°C, constant
Humidity: 40–60%, non-condensing
Compressed air: 1/4 inch, 6-10 bar, oil-free
Weight: 120 kg including SC600
Width: 1450 mm
Depth: 880 mm
Height: 600 mm
Supply voltage: 400V
