142 Serie für ERSA i-TOOL TRACE

ERSADUR soldering tips, 142 series, for i-Con MK2 stations

Catalog no.: +0142 GTIN: N/A Availability: available from stock
1 pcs.9,95 € – 35,50 €

incl. VAT

zzgl. Versandkosten

ATTENTION! Only for i-Con TRACE / i-Tool TRACE and i-Tool MK2 soldering iron.

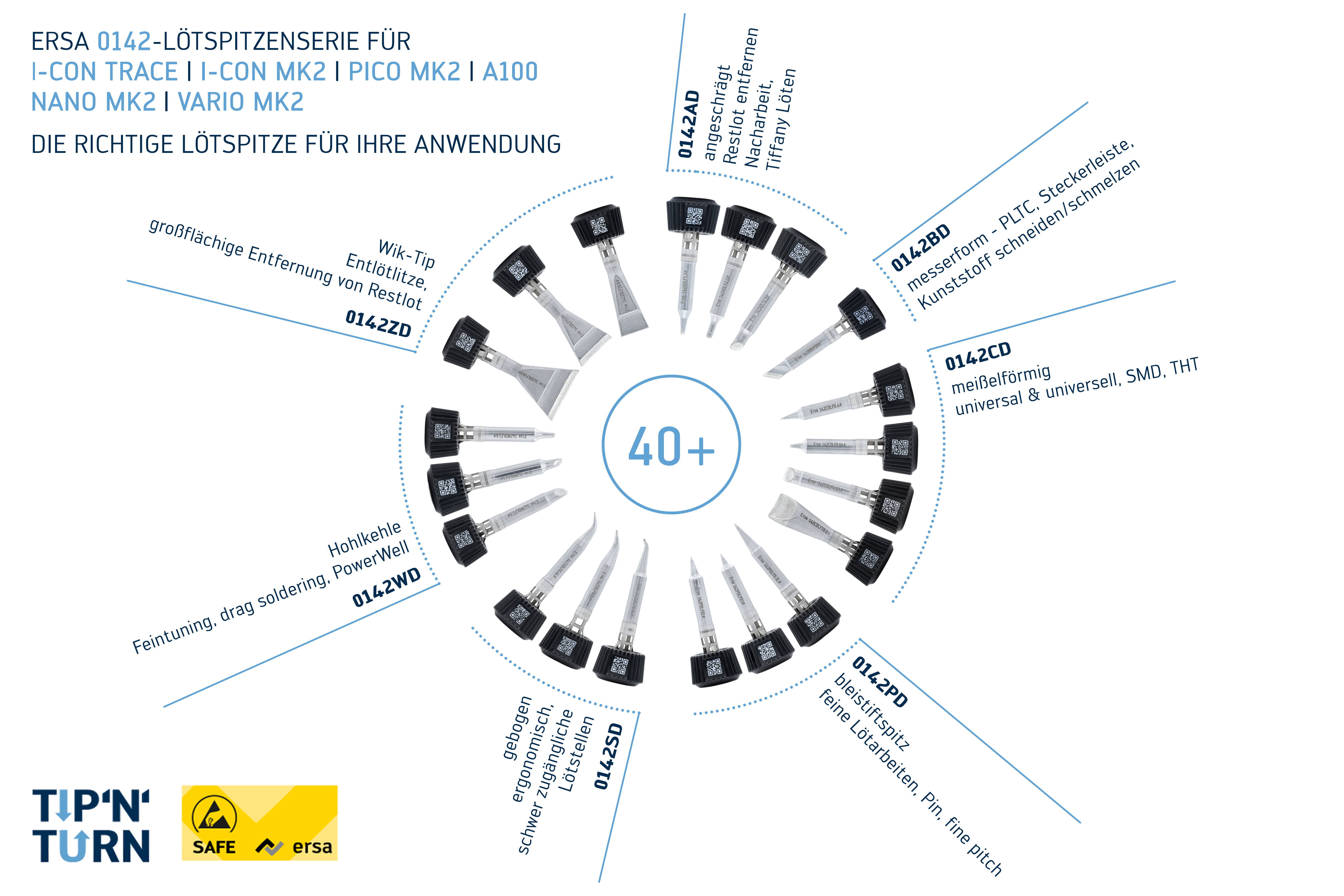

ERSA ERSADUR soldering tips for i-Tool TRACE are available in the following versions:

0142ADLF13 bevelled 1.3 mm
0142ADLF15 bevelled 1.5 mm
0142ADLF22 bevelled 2.2 mm
0142ADLF32 bevelled 3.2 mm
0142ADLF40 bevelled 4.0 mm
0142BDLF20 PLCC knife 2.0 mm
0142CDLF04 chisel-shaped 0.4 mm
0142CDLF06 chisel-shaped 0.6 mm
0142CDLF08 chisel-shaped 0.8 mm
0142CDLF08A asymmetrical, chisel-shaped 0.8 mm
0142CDLF10 chisel-shaped 1.0 mm
0142CDLF100 chisel-shaped 10 mm,
0142CDLF12 chisel-shaped 1.2 mm
0142CDLF120 chisel-shaped 12 mm,
0142CDLF16 chisel-shaped 1.6 mm
0142CDLF16A asymmetrical, chisel-shaped 1.6 mm
0142CDLF18L extended, chisel-shaped 1.8 mm
0142CDLF20 chisel-shaped 2.0 mm
0142CDLF24 chisel-shaped 2.4 mm
0142CDLF24A asymmetrical, chisel-shaped 2.4 mm
0142CDLF24L extended, chisel-shaped 2.4 mm
0142CDLF32 chisel-shaped 3.2 mm
0142CDLF46A asymmetrical, chisel-shaped 4.6 mm
0142CDLF50 chisel-shaped 5.0 mm
0142CDLF65 chisel-shaped 6.5 mm
0142CDLF80 chisel-shaped 8.0 mm
0142CDLF80A asymmetrical, chisel-shaped 8.0 mm
0142PDLF01 pencil point 0.1 mm
0142PDLF03 pencil point 0.3 mm
0142PDLF03L extended, pencil point 0.3 mm
0142PDLF05 pencil point 0.5 mm
0142PDLF08 pencil point 0.8 mm
0142PDLF08L extended, pencil point 0.8 mm
0142PDLF10 pencil point 1.0 mm
0142SDLF04L curved, extended pencil point 04 mm
0142SDLF06L curved, extended pencil point 06 mm
0142SDLF08L curved, extended pencil point 08 mm
0142WDLF16 hollow groove 1.6 mm
0142WDLF23 Hollow tip 2.3 mm
0142WDLF35 Hollow tip 3.5 mm
0142ZDLF100 Wick tip 10 mm
0142ZDLF150 Wick tip 15 mm
0142ZDLF200 Wick tip 20 mm

Dimensions N/A
ROHS compliance

Yes
Soldering tip shape

beveled, asymmetric, pencil point, curved, Fillet, Cow foot, chisel shaped, knife-shaped, extended, Wick-Tip
Tip diameter/width

0,1 mm, 0,3 mm, 0,4 mm, 0,5 mm, 0,6 mm, 0,8 mm, 1 mm, 1.2/2.4 mm, 1,3 mm, 1,6 mm, 1,8 mm, 1.8/5.2 mm, 10 mm, 12 mm, 15 mm, 2 mm, 2,2 mm, 2,3 mm, 2,4 mm, 20,00 mm, 3,2 mm, 3,5 mm, 4 mm, 4,6 mm, 5 mm, 6,5 mm, 8 mm
Weight 0,01 kg
complete length

41 mm, 44 mm, 44 mm, 45 mm, 46 mm, 48 mm, 50 mm, 51 mm
inner diameter shank

5.30 mm
outer diameter shaft

7.70 mm
soldering-tip diameter / width

0.10 mm, 0.30 mm, 0.40 mm, 0.50 mm, 0.60 mm, 0.80 mm, 1.20 mm, 1.30 mm, 1.50 mm, 1.60 mm, 1.80 mm, 1.00 mm, 10.00 mm, 12.00 mm, 15.00 mm, 2.20 mm, 2.30 mm, 2.40 mm, 2.00 mm, 20.00 mm, 3.20 mm, 3.50 mm, 4.60 mm, 4.00 mm, 5.00 mm, 8.00 mm
soldering-tip form

angled/extended, beveled, pencil point, concave portion, Cow foot, chisel-shaped, knife-shaped, extended, pencil point, extended, chisel-shaped, Wick-Tip
surface soldering-tip

Permanent soldering tip
tip series

142
type of soldering tip

angled/extended, asymmetric, straight

EU product manager

ERSA GmbH
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
