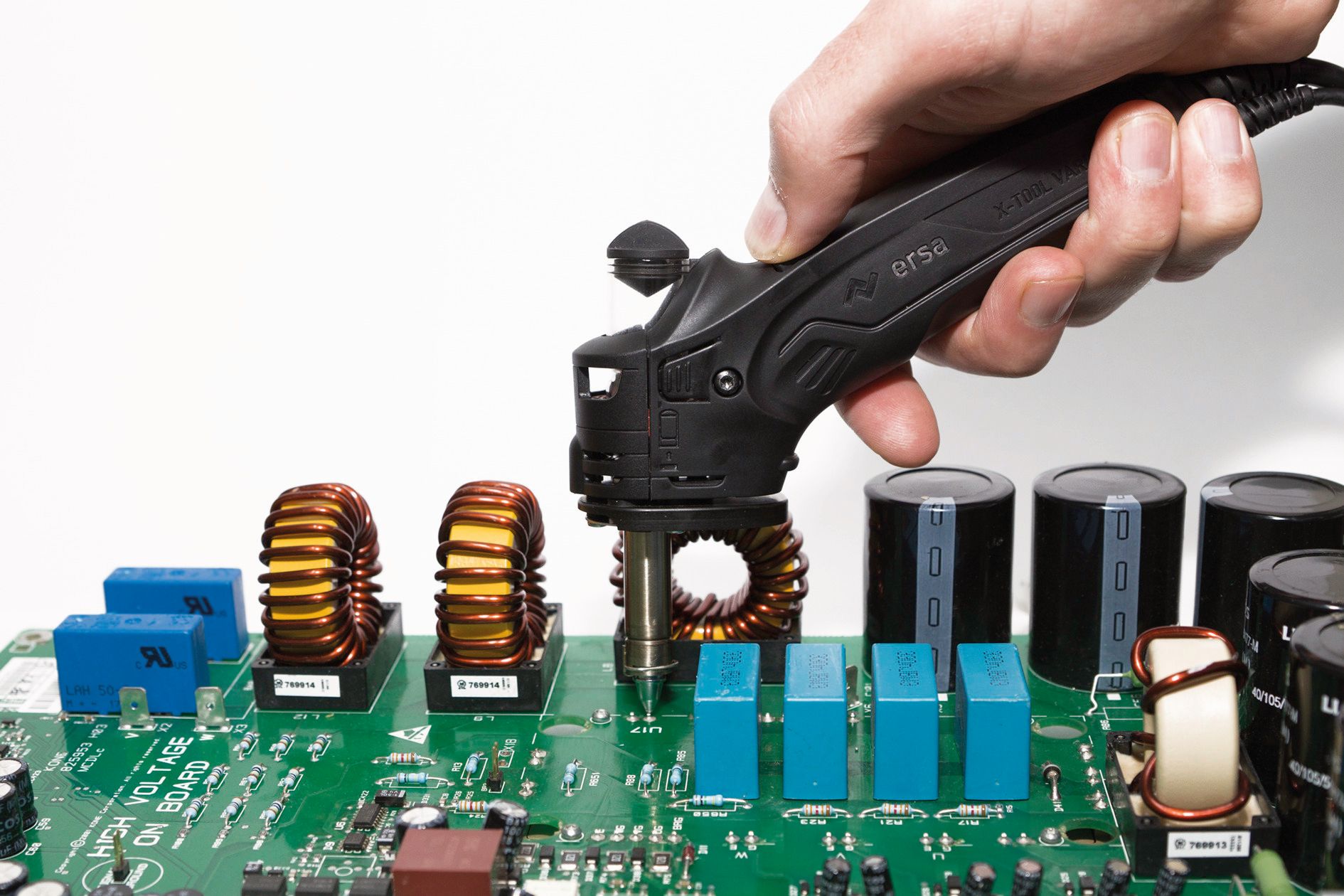

ERSA X-Tool Vario desoldering iron, one of the most powerful desoldering irons with 150 W heating power, very easy to change the desoldering tips and easy to clean the residual solder container
Designed for the most difficult desoldering jobs of conventional components on high-mass printed circuit boards.

Scope of delivery:

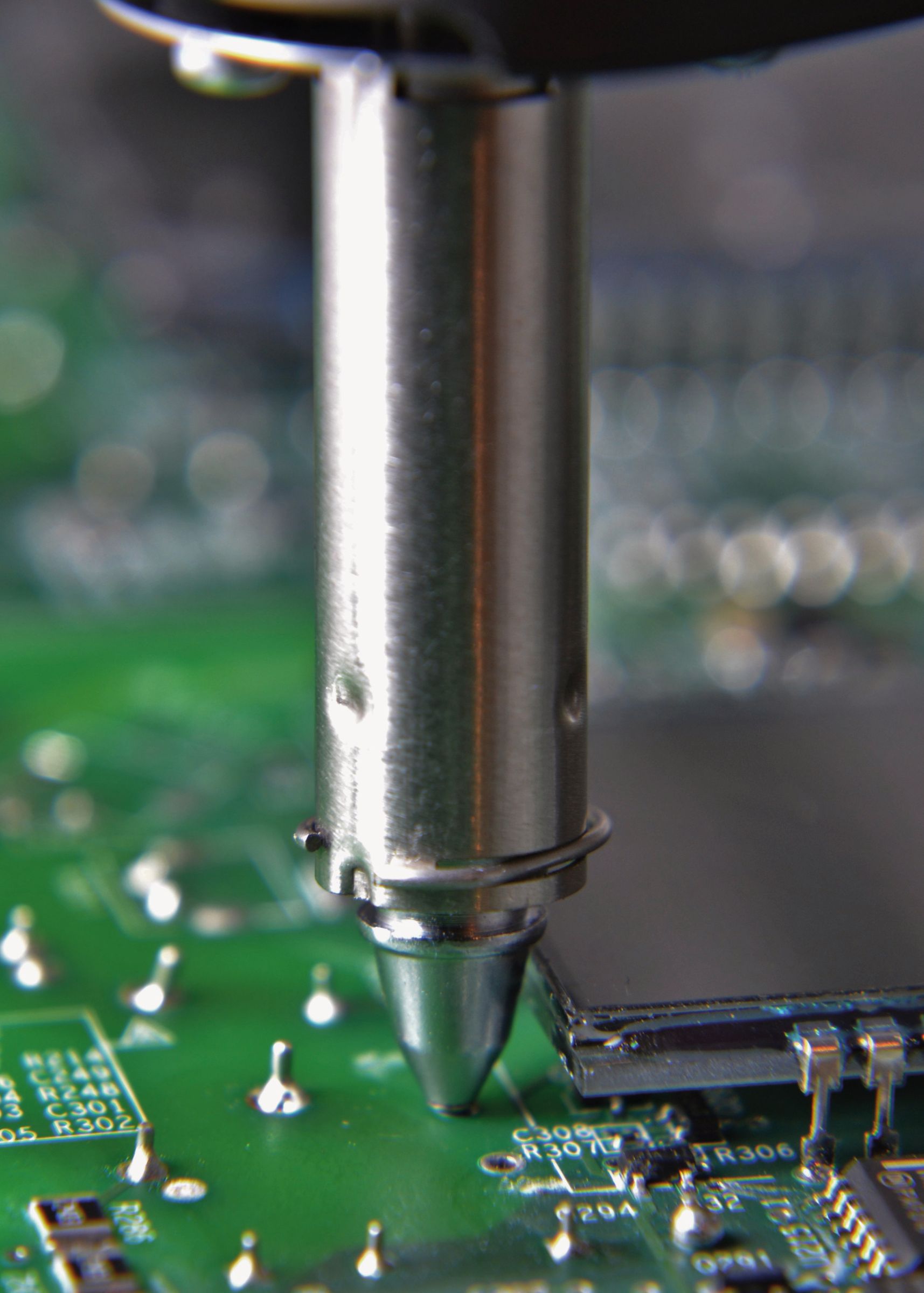

desoldering iron with packaging, equipped with a 0742ED1225H ERSADUR permanent desoldering tip, internal 1.2 mm (highly tinned) for the i-CON 2 V versions (0IC2200VXT), the i-CON VARIO 2 (0ICV2000AX) and the i-CON VARIO 4 (0ICV4000AICX)

Technical data:
Operating voltage 24 V~
Heating power 150 W
Heating time approx. 35 s to 350°C
Temperature range 150 – 450°C
Temperature measurement Ni-CrNi thermocouple
Starting vacuum up to 700 mbar
Weight approx. 210 g incl. cable and desoldering tip
Antistatic design

Spare parts subject to wear:
074100J Heating head with thermocouple
E074400 Solder collection container complete
3YE1057-04 Silicone holder for glass tube + 3x sinter filter
3T7440-03 Cover for glass tube
074404/10 Filter plug
3T7440-05 Filter disk
3YE1057-02 Prefilter
3N090 Cleaning brush
E074600 Service tool for X-Tool Vario
